MUGEN 6
SCMG-6000
The all-new design features a 6-heat pipe single-tower cooler equipped with the Wonder Tornado 120 PWM fan, reaching 2000 RPM for efficient and low-noise performance. The offset design minimizes assembly interference. Utilizing the H.P.M.S. V mounting system ensures optimal CPU cooler installation. With a compact height of only 15.4cm, it is compatible with most computer cases with flagship-level performance.
Flat-Smooth Top Cover Design
Universal Fit Unlimited Performance
Classic 6-heat pipe single tower cooler, high efficiency and low noise
Zero Interference Design
Heatsink Offset Design providing a Zero interference perfect installation experience and superior compatibility with overclocked memory, compact size at a height of 154mm, it boasts excellent case compatibility.
Shock Absorption Reinforcement
The new Wonder Tornado fan features a reinforced frame and comes with four removable anti-vibration pads, reducing vibrations transmitted to the computer case during operation and minimizing any noise.

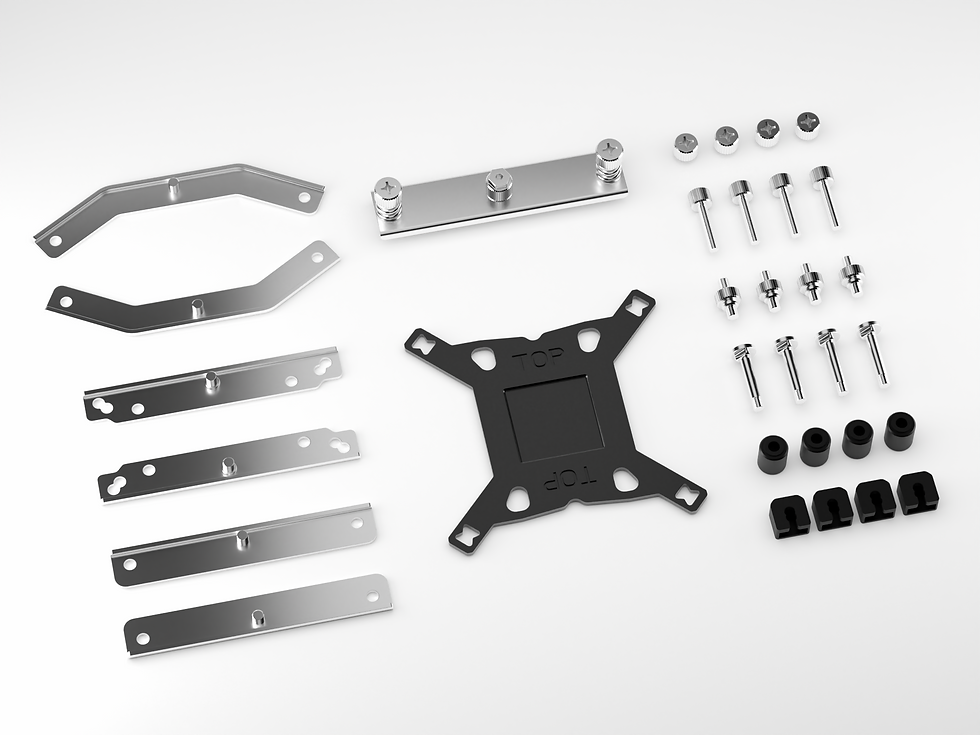

Hyper Precision Mounting System V (H.P.M.S. V)
Scythe easy-to-install H.P.M.S. V mounting system presents more optimal contact pressure to the latest CPUs on the market included INTEL LGA 1851 and AMD AM5 suppport.
Model Name :
Model Number :
Socket :
Dimension(w/Fan) :
Heatpipe :
Weight(w/Fan) :
Fan Spec Model Name :
Fan Size :
Fan Speed :
Air Flow :
Statics :
Noise :
Voltage :
Rate Current :
Connector :
MUGEN 6
SCMG-6000
INTEL : LGA 1851 / 1700 / 115x / 1200 / 2011 / 2066
AMD : AM5 / AM4
W132 x D106 x H154 mm
W5.19 x D4.17 x H6.06 inch
Ø6mm x 6
1013g / 35.7oz
WONDER TORNADO 120 PWM - 2000 RPM
120 x 120 x 26 mm(w/rubber)
350 ± 200 ~ 2000 ± 10% RPM
7.68 ~ 60.29 CFM
0.05 ~2.45 mmH2O
0.49 ~24.03 Pa
3.00 ~ 26.88 dBA
12V
0.15A
4 Pin PWM
